GENERAL:
8x POLYPHON, VIRTUAL ANALOG
64 (8x8) Sounds, every incloudes 5 Parts (= 5x Multitimbral/Layer/Split)
COMPARE, RESTORE, PROTECT, MIDIDUMPS, COPYMODES

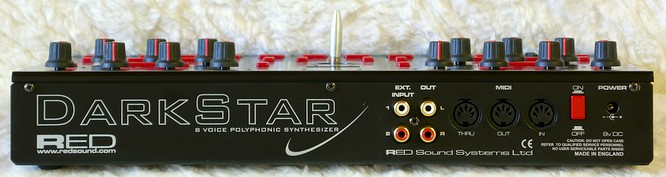

CONNECTION:
MIDI IN/OUT/THRU
POWER 9V DC
OUT: CHINCH/RCA L & R
IN: CHINCH/RCA EXTIN 1 & 2
5x Part:
GENERAL
- POLY: 0 - 8
- VOLUME: 0 - 127
- PANORAMA: +/-
- PANORAMAMOD: POT, ENV1, ENV2, LFO1, LFO2
- TREMOLO: +/-
- TREMOLOMOD: LFO1, LFO2
- TRANSPOSE: +/-24
- LOWKEY: 0 - 100
- HIKEY: 1 - 100
- CHANNEL: 1 - 16
- GLIDE: ON/OFF
- PORTAMENTO: ON/OFF, 8 TYPES
- PORTAMENTO SPEED
- SUSTAIN: ON/OFF
- PITCHBEND: 0 - 12
- MODWHEELFILTER: +/- 7
- MODWHEELPITCH: +/- 7
- AFTERTOUCHPITCH: +/- 7
- AFTERTOUCHFILTER: +/- 7
OSC1
- SAW <> SQU
- DETUNE: +/- 2
- PITCHMOD: +/- 10
- PITCHMOD: ENV1, ENV2, LFO1, LFO2
- PULSWIDTH: +/- (SQR)
- PWMOD: +/-
- PWMOD: ENV1, ENV2, LFO1, LFO2
OSC2
- SAW <> SQU
- WAVEFORM: NORMAL, FORMANT, EXTIN 1, EXTIN 2, PINKNOISE, WHITENOISE, BLUENOISE
- DETUNE: +/- 2
- OSCOFFSET: 0, +5, +7, +12, +16, +17, +19, +24 (SEMITONE)
- PITCHMOD: +/- 10
- PITCHMOD: ENV1, ENV2, LFO1, LFO2
- PULSWIDTH: +/- (SQR)
- PWMOD: +/-
- PWMOD: ENV1, ENV2, LFO1, LFO2
OCS1 + OSC2
- SYNC OSC2 > OSC1
- 3D-MIXER: VOL OSC1, VOL OSC2, RINGMOD OSC1 VOL, RINGMOD OSC2 VOL

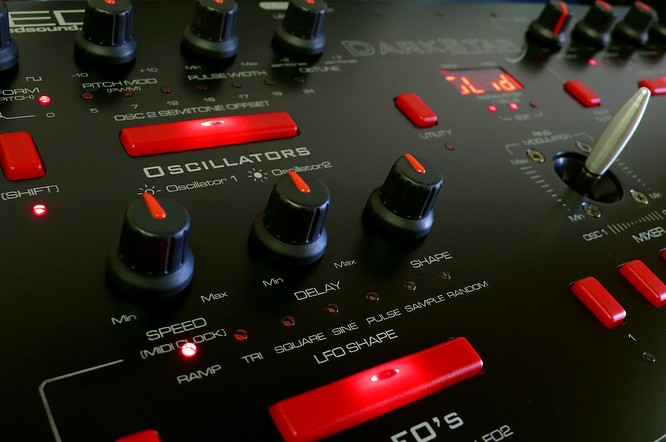

LFO1 + LFO2
- SPEED
- DELAY
- SHAPE: RAMP, TRI, SQUARE, SINE, PULSE, SAMPLE, RANDOM
- SYNC: Off, 1/8Beats - 8Bars
- KEYSYNC: ON/OFF
ENV1 + ENV2
- ADSR
- VELOCITY
FILTER
- FILTER: ON/OFF
- LPF, BPF, HPF (12dB)
- CUTOFF
- RESO (NO SELFOSC)
- TRACKING: OFF, -50% - +150%
- RESMOD: ENV1, ENV2, LFO1, LFO2
- ENVMOD: +/-
- LFO2MOD: +/-
